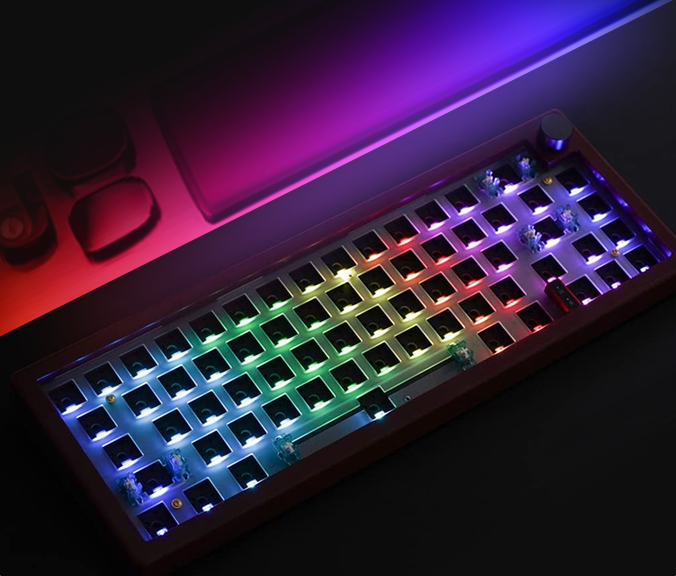

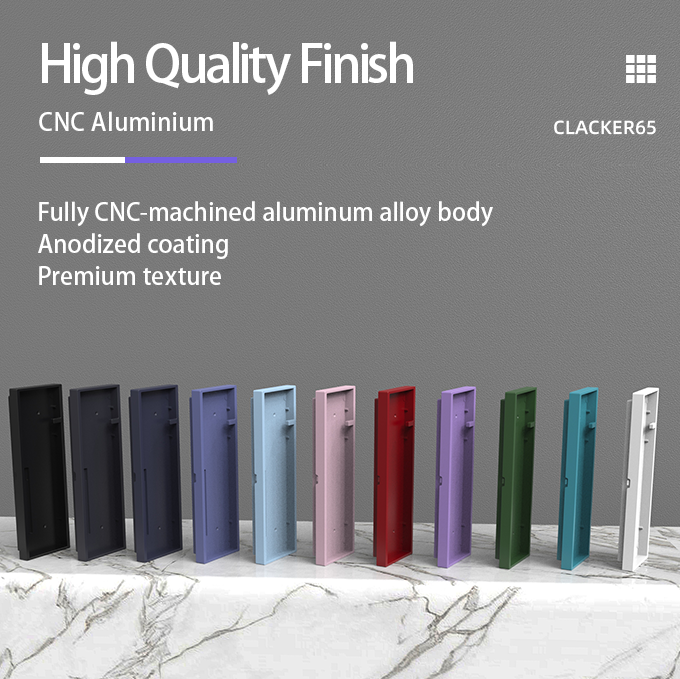

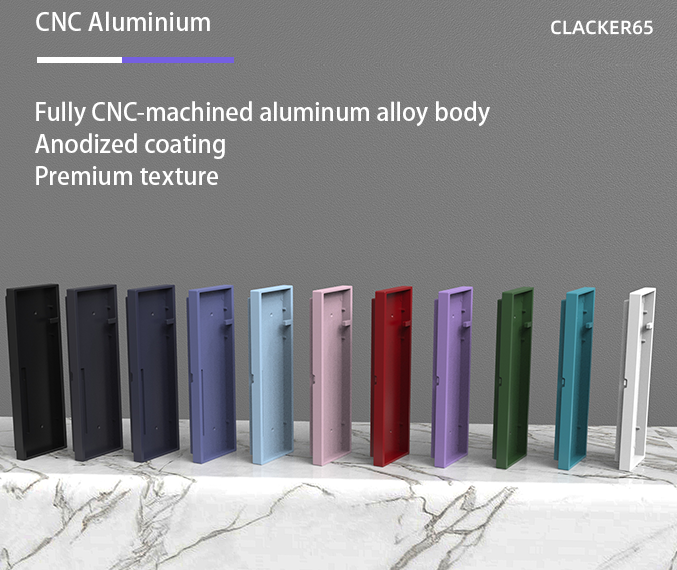

Rapid Trigger mode : 急速 RT 模式 :
With Rapid Trigger, key presses will be more responsive. Actuation point, Trigger sensitivity and Reset sensitivity can be adjusted in this mode. 使用急速模式可以优化你的键盘输入速度。按下即触发，松开即重置。在 FPS 游戏中提供快速和精确的操作

Snap Tap :
Snap Tap is available for Key A and Key D. Snap Tap prevents them from being pressed simultaneously. Actuation point, Trigger sensitivity and Reset sensitivity can be adjusted in this mode. Snap Tap允许键盘检测同时按下A和D键时,仅激活最后检测到的键.

触发点: Actuation 2.0mm

激活灵敏度: Trigger sensitivity: 1.0mm

松开重置灵敏度: Reset sensitivity: 1.0mm

IMPORTANT: DO NOT NAVIGATE AWAY FROM THIS PAGE BEFORE COMPLETING "SAVE CLB" 重要提示：完成"保存校正"前请勿离开本页面！

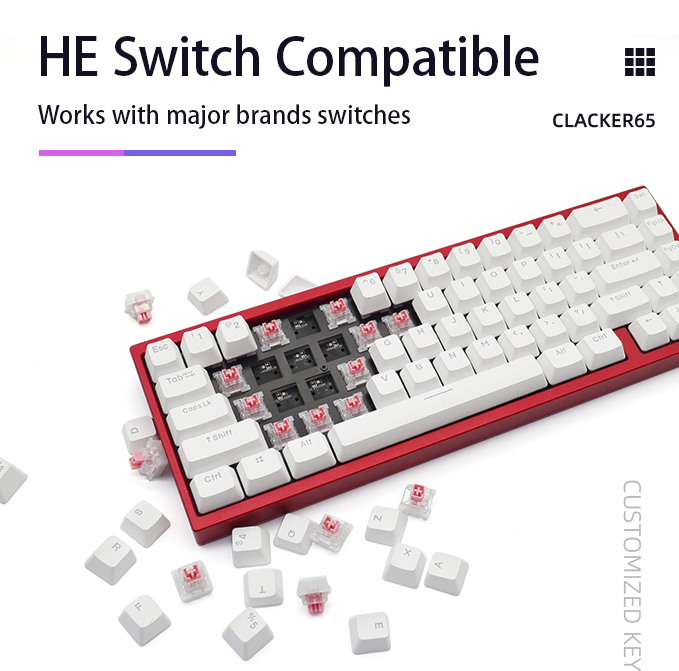

(This section is for users customizing their keyboard switches. If your keyboard uses factory default switches, you may skip these steps.)

(本节适用于自定义键盘开关的用户。若使用出厂默认开关，可跳过此步骤。)

1. Ensure all keys are in their idle (unpressed) position.

1. 确保所有按键处于初始未按压状态.

2. Click the "CLB MODE" button to begin calibration. Firmly press each key completely, using normal typing pressure. Avoid excessive force, press as you would during regular keyboard use.

2. 点击“CLB MODE” 按钮开始校正。请勿用力按压按键。像使用键盘一样正常按下.

3. Firmly press each key completely, using normal typing pressure. Avoid excessive force, press as you would during regular keyboard use.

3. 以正常打字力度完全按压每个按键。请勿用力按压按键，像使用键盘一样正常按下.

4. When all keys are highlighted (indicating successful calibration), click "SAVE CLB" to store your settings.

4. 当所有按键高亮显示时，点击"保存校正"。

Note : Certain switch models with weak magnetic fields cannot be calibrated through CLB.

注: 某些型号的按键磁场很弱，设备不允许对这些按键进行校准

(Important: In DFU mode, your keyboard will temporarily disconnect and won't be recognized as a HID device.) (注意：在 DFU 模式下，键盘将不再被识别为 HID 设备。)

(To exit DFU mode: Simply unplug and reconnect the USB cable.)

(若返回正常模式，请拔下并插入 USB 电缆。)

Firmware Upgrade Instructions :

升级固件的步骤 :

1. Click the "DFU MODE" button. Confirmation: Keyboard LED will turn solid RED.

1. 点击“DFU 模式”按钮。在进行下一步之前，请确保键盘 LED 变为红色。

2. Run winusb_driver.exe : winusb_driver.exe. Skip this step if already installed.

2. 安装WINUSB驱动:winusb_driver.exe. 如果已安装则忽略此步骤。

3. Download latest firmware : firmware_CK65A_HE_v1.4.rar

3. 下载最新固件 : firmware_CK65A_HE_v1.4.rar

4. Extract the downloaded files. Execute setup.bat to begin the flash process.

4. 解压文件并运行 setup.bat 来升级固件.

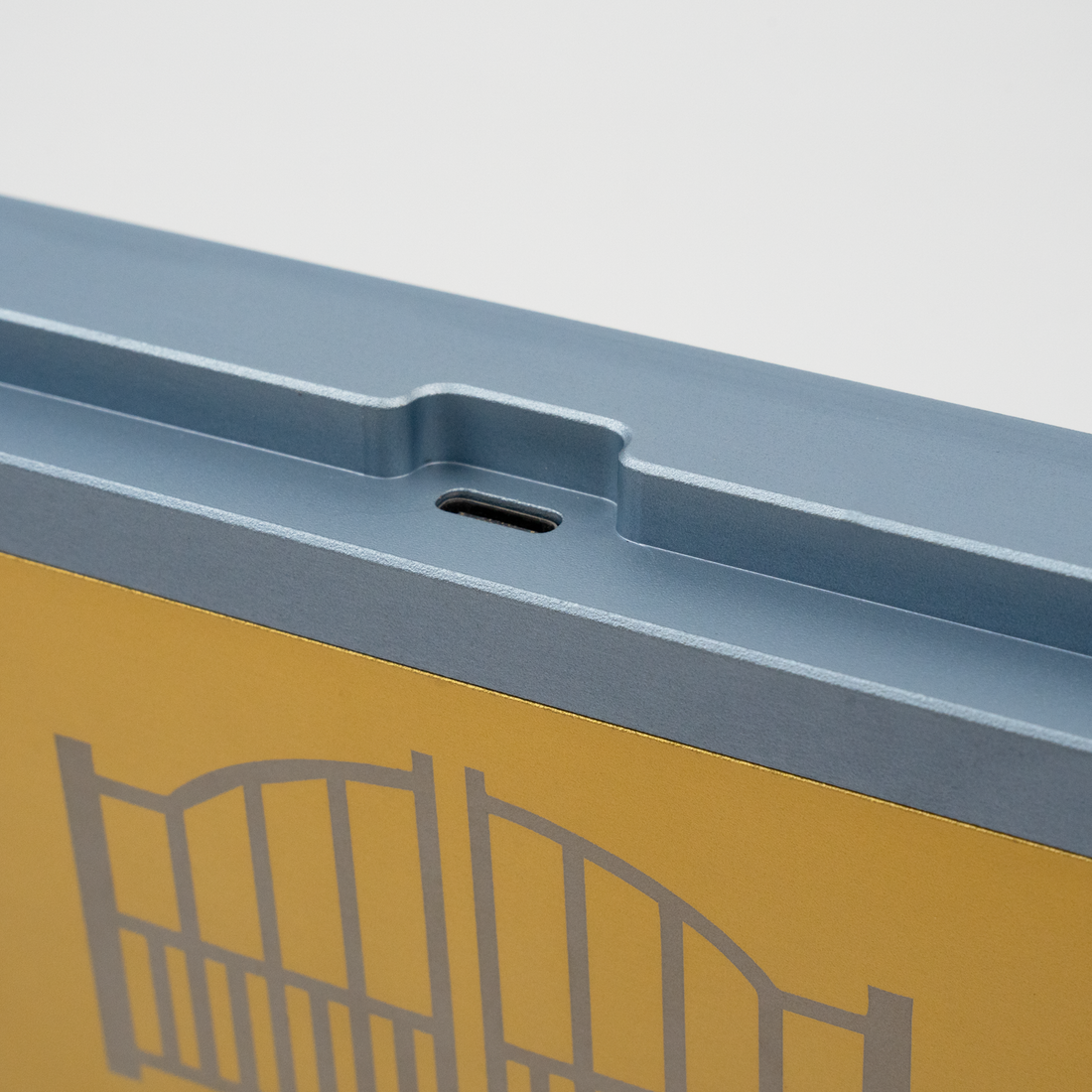

5. Unplug and reconnect the USB cable.

5. 拔出并插入 USB 电缆.

6. Your keyboard will reboot with the new firmware.

6. 固件更新完毕，键盘即可以使用.
